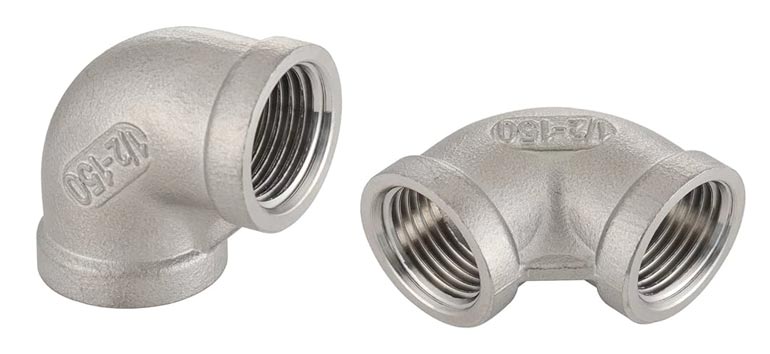

SS Elbow
SS Elbow
Offering you a complete choice of products which include stainless
steel elbow, 45 degree ss elbow, ss reduce elbow, stainless steel elbow fitting,
ss male female elbow and ss elbow fittings.
Being a well-established organization, we bring forth an excellent
assortment of SS 90* Degree Elbow that is widely used in numerous industries to
change the direction of the pipes. Our provided elbow is manufactured by our
veteran professionals with the help of quality approved stainless steel and
advanced technology. In order to meet the particular needs of the clients, we
provide this elbow in different sizes, shapes and dimensions at reasonable
rates.
Specification Chart Of Schedule SS Elbow
| Specification : | ASME B16.9 Stainless Steel Elbow |
|---|---|
| Specialized manufacturer of | Tees, Crosses, Reducers, 90º Elbows, Stub End, Pipe Bend, 45º Elbows, Pipe Cap |
| Type | DN15-DN1200 |
| Size Range | ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) |
| Bending Radius | R=2D, 3D, 5D, 6D, 8D, 1D, 10D or Custom |
| Manufacturing process | Press, Forge, Push, Cast, etc. |
| size | Seamless ButtWeld Fittings: 1/2 - 10 inch Welded Butt Weld Fittings: 1/2" - 48" |
| Connection | Welding |
| Origin & Mills | Indian, Korean, Russian, Japanese, European |
| Dimensions | ASME B16.28, MSS-SP-43, ASME/ANSI B16.9, BS4504, BS10, BS4504, BS1560, |
| Thickness | SCH10, SCH 80, SCH 100, SCH20, SCH30, STD SCH40, SCH 160, XXS, SCH60, XS, SCH 120, SCH 140, available with NACE MR 01-75 |
| Nominal Pipe Size |
OD | SS 90° Elbows | SS 45° Elbows | SS 180° Returns | |||||
|---|---|---|---|---|---|---|---|---|---|
| (inch.) | LR | SR | LR | LR | |||||
| (millimeter) |
(inch.)
|
Center to Face (inch.) |
Center to Face (inch.) |
Center to Face (inch.) |
Radius (inch.) |
Center to Center (inch.) |
Back to face (inch.) |
||
|
1/2
|
21.3
|
0.840
|
1 1/2
|
–
|
5/8
|
2
|
1 7/8
|
||
|
3/4
|
26.7
|
1.050
|
1 1/8
|
–
|
7/16
|
2 1/4
|
1 11/16
|
||
|
1
|
33.4
|
1.315
|
1 1/2
|
1
|
7/8
|
3
|
2 3/16
|
||
|
1 1/4
|
42.2
|
1.660
|
1 7/8
|
1 1/4
|
1
|
3 3/4
|
2 3/4
|
||
|
1 1/2
|
48.3
|
1.900
|
2 1/4
|
1 1/2
|
1 1/8
|
3
|
4 1/2
|
3 1/4
|
|
|
2
|
60.3
|
2.375
|
3
|
2
|
1 3/8
|
4
|
6
|
4 3/16
|
|
|
2 1/2
|
73.0
|
2.875
|
3 3/4
|
2 1/2
|
1 3/4
|
5
|
7 1/2
|
5 3/16
|
|
|
3
|
88.9
|
3.500
|
4 1/2
|
3
|
2
|
6
|
9
|
6 1/4
|
|
|
3 1/2
|
101.6
|
4.000
|
5 1/4
|
3 1/2
|
2 1/4
|
7
|
10 1/2
|
7 1/4
|
|
|
4
|
114.3
|
4.500
|
6
|
4
|
2 1/2
|
8
|
12
|
8 1/4
|
|
|
5
|
141.3
|
5.563
|
7 1/2
|
5
|
3 1/8
|
10
|
15
|
10 5/16
|
|
|
6
|
168.3
|
6.625
|
9
|
6
|
3 3/4
|
12
|
18
|
12 5/16
|
|
|
8
|
219.1
|
8.625
|
12
|
8
|
5
|
12
|
24
|
16 5/16
|
|
|
10
|
273.1
|
10.750
|
15
|
10
|
6 1/4
|
15
|
30
|
20 3/8
|
|
|
12
|
323.9
|
12.750
|
18
|
12
|
7 1/2
|
18
|
36
|
24 3/8
|
|
| Stainless Steel Elbow Manufacturers | |||||||||
