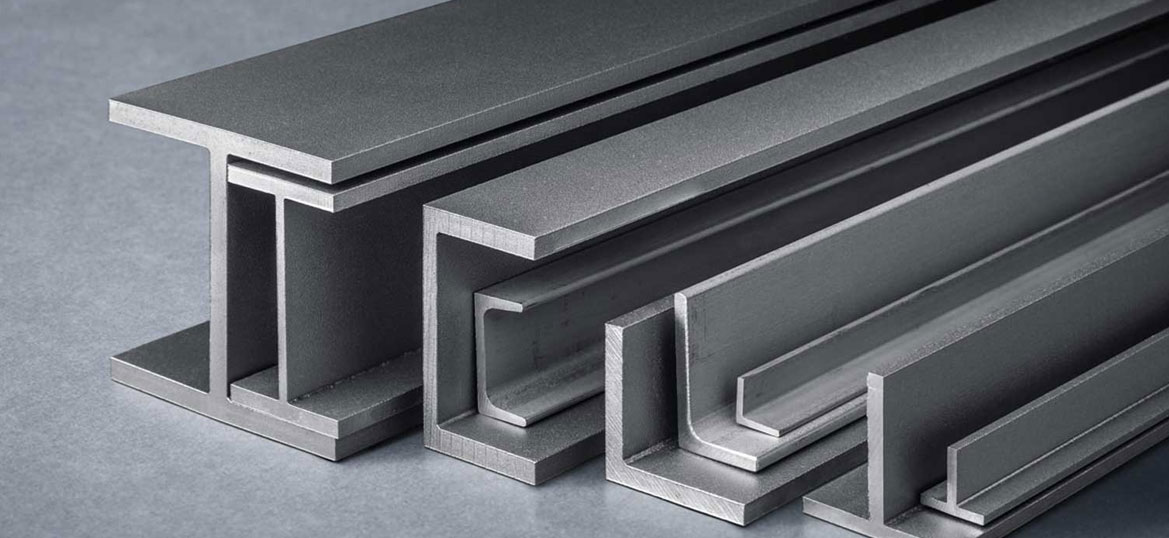

ANGLE,CHANNEL & FLATS

We offer our customers a wide range of Angles & Channels widely find its applications in different industrial & commercial sectors. Also these are scratch-proof and corrosion resistant and offer greater load bearing capacity. These are available in various dimensions of width, leg height, material thickness and other parameters.

Materials Grades & Standard Specifications
Stainless Steel

ASTM A479, A182 - 304, 304L, 304H, 316, 316L, 316H, 316Ti, 309, 310, 317L, 321, 347, 904L, 17-4PH & 400 Series
Mild Steel

Gr. 1008, 1010, 1015, 1020, CK35, CK45, CK55, CK60 Etc.
Carbon Steel

ASTM A105, A350 LF2
Alloy Steel

ASTM A182 F5, F9, F11, F12, F21, F22, F91
High Nickel Alloys

Hastelloy, Nickel, Monel, Inconel, Incoloy, Alloy-20 & Cupro Nickel
Non Ferrous

Copper

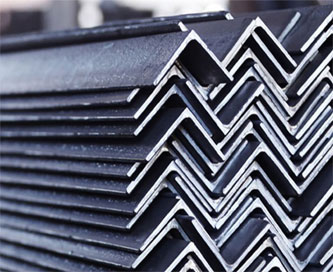

Angle

One of the most commonly used Steel Products in construction is MS Angles and we specialize in supplying Wholesale Mild steel Angles. We Supply Equal Angles, Unequal Angles and T Angles which are available in different thickness and dimensions.

Specifications
Dimensions EN, DIN, JIS, ASTM, BS, ASME, AISI
Type Equal Angle, Unequal Angle
Thickness 3.0mm – 120mm
Length 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
Angle 5mm to 9mm
Details
Size in mm 3 4 5 6 8 10 12 16 18 20 25
20*20 0.9 1.1
25*25 1.1 1.4 1.8 2.2
30*30 1.4 1.8 2.2 2.8
35*35 1.6 2.1 2.6 2.8
40*40 1.8 2.4 3.0 3.5
45*45 2.1 2.7 3.4 3.5
50*50 2.3 3.0 3.8 4.5
65*65 4.9 5.8 7.7 9.4
75*75 5.7 6.8 8.9 11.0
80*80 7.3 9.6 11.8 14.0
90*90 8.2 10.8 13.4 15.8
100*100 9.2 12.1 14.9 17.7
110*110 13.4 16.5 19.6 24.2
130*130 15.9 19.7 23.4 28.9
150*150 22.8 27.2 35.8 39.9 11.1
200*200 36.6 48.5 54.0 60.0 73.6

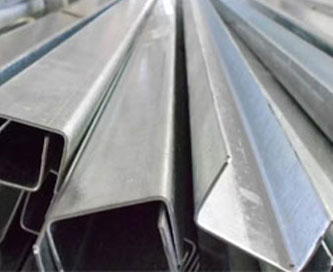

Channels

We are engaged in exporting of Mild Steel Channel, which is widely used as structural support in construction works. Available in different sizes and shapes, the MS Channels are procured from reliable sources, which use high grade steel that adds anti-corrosion properties and high tensile strength to the finished range.We are rated among the leading MS Channels Exporters and Mild Steel U Channels Suppliers.

Specifications
Dimensions EN, DIN, JIS, ASTM, BS, ASME, AISI
Shape U Channel, C Channel
Thickness 3.0mm – 120mm
Length 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
Channel 40mm*20mm~300mm*300mm
Details
Channel Size in mm Weight Kg/m Size in mm Weight Kg/m
75*40 7.1 200*75 22.3
100*50 9.6 250*80 30.6
125*65 13.1 250*82 34.2
150*75 16.8 300*90 36.3
175*75 19.6 400*100 50.1

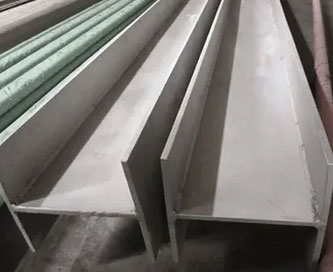

Beam

The Mild Steel Beams, which we offer, are extensively used for construction purposes for making steel-frames for buildings and bridges. MS Beams exported by us are highly durable and have high tensile strength. We are one of the most reliable M S Beams Suppliers. Our MS Beams are available in 2 types- Mild Steel H Beam and Mild Steel I Beam.

Shape H/I
H Beam Size 100mm to 1040mm
I Beam Size 100mm to 400mm
